15332

Paddington Knob with Backplate

  • $235.00
Free shipping on all Hardware. Breeze and Door shipping calculated at Checkout.
Color
Back Plate
Lock type



Crafted from solid forged brass, the Paddington knob provides a subtle nod to its English roots with a refined, elegant appearance, a versatile knob that is perfectly suited to a concealed fox rose or a number of different backplates.
All Paddington knobs and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.

This product comes with face fix wood screws and tie bolts, latches are sold separately. Euro and privacy punch outs are 85mm CTC. Half sets in this range are available fixed or operable. Please add LH or RH to the end of any code when ordering.

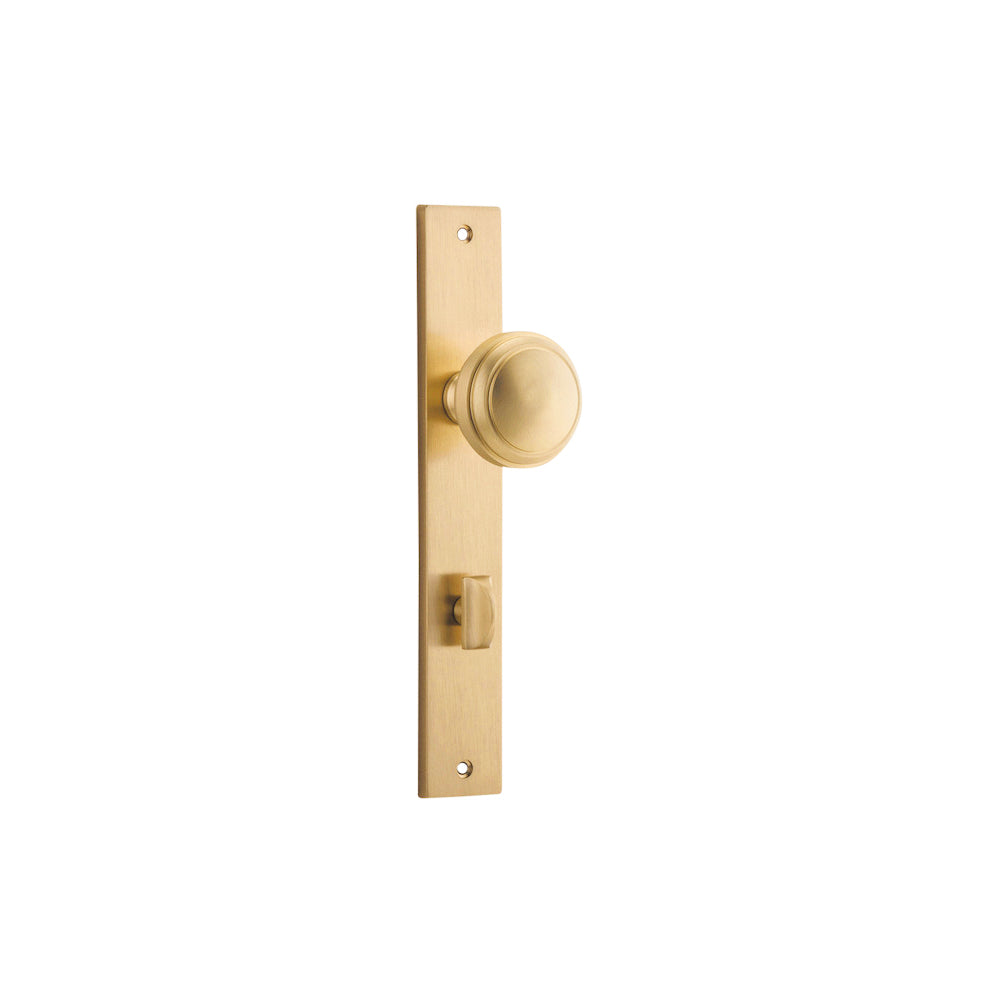

Square Plate specs -

Height: 240mm
Width: 38mm
Projection: 61mm
Centre to centre: 205mm


Oval Plate  specs-

Height: 240mm
Width: 40mm
Projection: 61mm
Centre to centre: 205mm

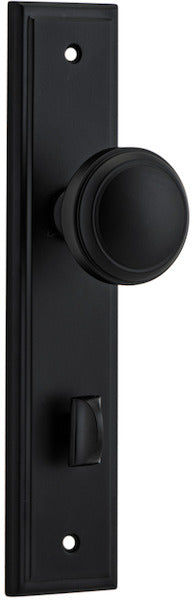

Stepped backplate specs-

Height: 237mm
Width: 50mm
Projection: 64mm
Centre to centre: 205mm
Also Note these Handles include all required fitting .

- Split Cam Tube Latch with 60 mm backset

Backset: 60mm

Download Spec Sheet

-For Privacy a Privacy Bolt Round  also with a 60 mm backset .

Backset: 60mm

Download Spec Sheet

(please advise if you need a different size.)
